LaMEM Integration

DRex.jl can be coupled to 3D geodynamic simulations run with LaMEM via an optional package extension that loads automatically when the trigger packages are imported:

using LaMEM, GeophysicalModelGenerator, WriteVTK
using DRex   # DRexLaMEMExt loads automatically

How it works

Load snapshots — reads all LaMEM output timesteps (velocity gradient tensor and optionally velocity) and converts units to km / Myr / (1/Myr).
Backtrack positions — starting from user-specified target locations at the final snapshot, positions are advected backward through the velocity field to find the material source at the first used snapshot.
Seed tracers — create_tracers places Mineral particles with random initial orientations at the backtracked source positions.
Evolve CPO — evolve_cpo! advects tracers forward and integrates the DRex ODE at each step; all tracers run in parallel via Threads.@threads.
Write ParaView output — a .pvd time-series and per-step .vtp files are written with the following point data:

Field	Type	Description
`fast_axis`	3-vector	Bingham-mean olivine a-axis direction
`m_index`	scalar	Texture strength (0 = random, 1 = single crystal)
`finite_strain`	scalar	Largest principal stretch − 1
`deformation_gradient`	3×3 tensor	Full deformation gradient F

Deformation gradient vs CPO

deformation_gradient is the final accumulated F for each tracer (the value at the end of the simulation). It is written at every time step in the .pvd series but does not change between frames — only the CPO fields (fast_axis, m_index) and positions vary per snapshot. F and CPO are different quantities: F describes the bulk macroscopic deformation of a material parcel, whereas CPO tracks the orientations of individual grains within it.

All-in-one function

compute_cpo_from_lamem does everything in a single call:

tracers, snaps = compute_cpo_from_lamem(
    "Subduction_3D_CPO", "Subduction_3D_CPO";
    target_positions   = [[x, y, z], ...],   # or: initial_positions
    output_dir         = "Subduction_3D_CPO_tracers",
    skip_initial_steps = 5,
    drex_params        = drex_params,
    n_grains           = 1000,
    n_substeps         = 5,
    fabric             = olivine_A,
)

Time-dependent vs steady-state mode

Time-dependent (default): reads velocity gradients from every snapshot.

Steady-state: assumes a single snapshot's velocity field is constant in time, useful for testing CPO development or avoiding loading hundreds of files:

tracers, snaps = compute_cpo_from_lamem(
    sim_name, sim_dir;
    target_positions      = [...],
    steady_state_step     = 150,
    steady_state_duration = 20.0,   # Myr
    steady_state_n_steps  = 200,
)

Position specification

Provide exactly one of:

Keyword	Description
`target_positions`	`[x,y,z]` km at the last snapshot — positions are backtracked to find the source
`initial_positions`	`[x,y,z]` km at the first snapshot — CPO is evolved forward directly

Lower-level API

snaps   = load_snapshots(sim_name, sim_dir)
src     = backtrack_positions(target_positions, snaps; n_substeps=5)
tracers = create_tracers(src; n_grains=1000, seed=42, fabric=olivine_A)
evolve_cpo!(tracers, drex_params, snaps; advect=true, n_substeps=5)

Visualising in ParaView

File → Open → <output_dir>/cpo_tracers.pvd

Useful filters:

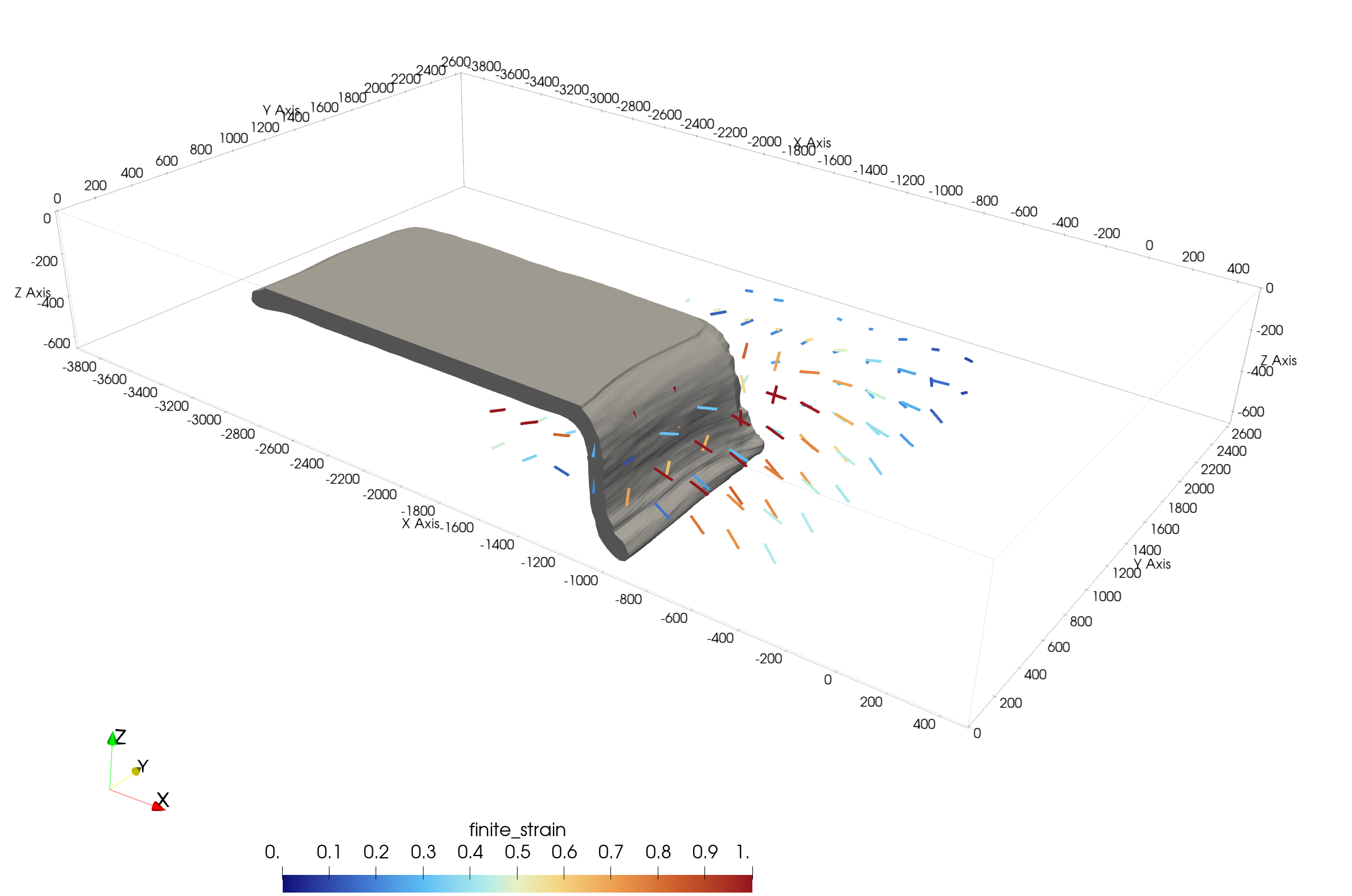

Glyph → Arrow oriented by fast_axis, scaled by m_index — fast axis direction and strength
Threshold on m_index — hide near-random tracers (M < 0.05)
Calculator on deformation_gradient — extract individual F components or principal stretches

Prerequisites

The LaMEM simulation must be run with these output flags in the .dat file:

out_vel_gr_tensor = 1
out_velocity      = 1

See examples/LaMEM/ for a complete 3D subduction example.
