3D tomography model that is re-interpolated on a regular grid

Goal

This explains how to load a 3D seismic data set that is given in CSV format (comma separated ASCII), and plot it in paraview. The example is a shear-wave velocity model of the Alpine-Mediterranean region, described in:

El-Sharkawy et al. (2020), The Slab Puzzle of the Alpine‐Mediterranean Region: Insights from a new, High‐Resolution, Shear‐Wave Velocity Model of the Upper Mantle, G$^3$ https://doi.org/10.1029/2020GC008993

As the data is not given in a regular lon/lat grid, we first interpolate it to a different mesh.

Steps

1. Download data

The data is can be downloaded from https://www.seismologie.ifg.uni-kiel.de/en/research/research-data/mere2020model. Do that and start julia from the directory where it was downloaded.

2. Read data into Julia

The main data-file, El-Sharkawy-etal-G3.2020_MeRE2020_Mediterranean.csv, has 23 lines of comments (indicated with #), after which the data starts. We can use the build-in package DelimitedFiles to read in the data, and tell it that the data is separated by |. We also want the resulting data to be stored as double precision values (Float64), and the end of every line is a linebreak (\n).

julia> using DelimitedFiles
julia> data=readdlm("El-Sharkawy-etal-G3.2020_MeRE2020_Mediterranean.csv",'|',Float64,'\n', skipstart=23,header=false)
3695678×4 Matrix{Float64}:
 32.12  -11.0    50.0  4.57
 36.36  -11.0    50.0  4.47
 38.32  -10.99   50.0  4.4
 49.77  -10.99   50.0  4.52
 29.82  -10.98   50.0  4.44
 34.1   -10.98   50.0  4.56
 40.26  -10.98   50.0  4.36
 42.19  -10.97   50.0  4.38
 44.1   -10.97   50.0  4.38
  ⋮

Next, extract vectors from it:

julia> lat  = data[:,1];
julia> lon  = data[:,2];
julia> depth=-data[:,3];
julia> Vs   = data[:,4];

Note that we put a minus sign in front of depth, as that is what GeophysicalModelGenerator.jl expects.

3. Reformat the data

3.1 Load and plot the data layout

The data is now available as a bunch of data points. In principle we can plot that in Paraview, but it is better to reformat it into a 3D grid.

Let's first have a look at how the data is distributed at a given depth level. For that, extract all points at 50 km depth and plot it (make sure you have the Plots.l package installed)

julia> ind=findall(x -> x==-50.0, depth)
julia> using Plots
julia> scatter(lon[ind],lat[ind],marker_z=Vs[ind], ylabel="latitude",xlabel="longitude",markersize=2.5, clims=(3.9, 4.8))

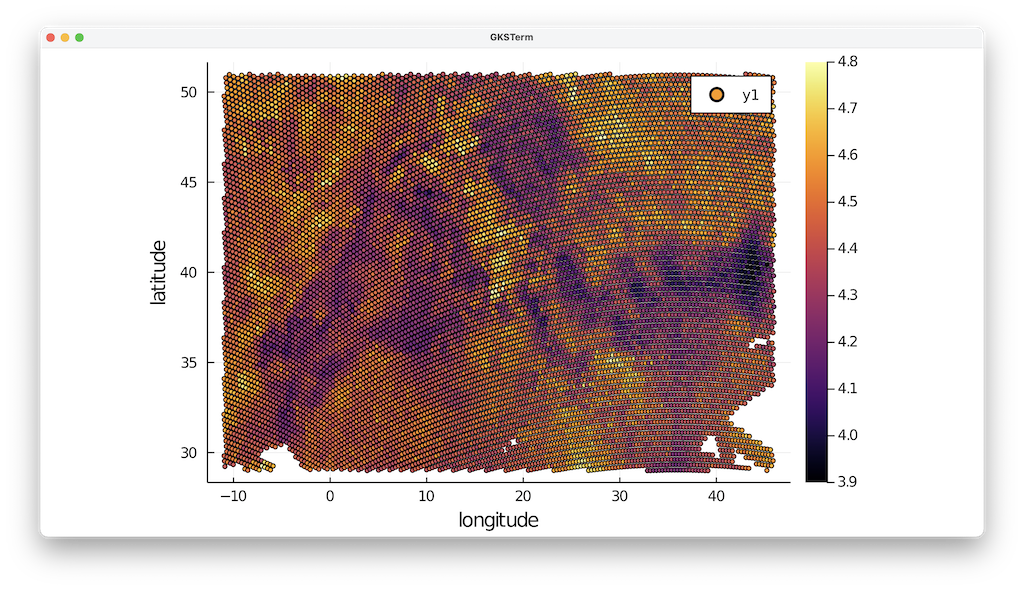

The result looks like this:

DataPoints

So this is somewhat regular but not entirely and in some areas data points are missing. It is possible to create a VTK mesh that exactly respects this data, but for that we need knowledge on how the points are connected in 3D. The comments in the file do not provide this information, which is why we interpolate it on a regular lon/lat grid here which uses the same depth levels as in the data.

We extract the available depth levels with

julia> Depth_vec = unique(depth)
301-element Vector{Float64}:
  -50.0
  -51.0
  -52.0
  -53.0
  -54.0
  -55.0
  -56.0
    ⋮
 -345.0
 -346.0
 -347.0
 -348.0
 -349.0
 -350.0

which shows that the data set goes from [-350:1:-50]. Let's create a regular grid, which describes a somewhat smaller area than the data-points to ensure that we can do an interpolation without having to extrapolate

julia> using GeophysicalModelGenerator
julia> Lon,Lat,Depth     =   lonlatdepth_grid(-10:0.5:40,32:0.25:50,Depth_vec);
julia> size(Lon)
(101, 73, 301)

The last command shows the size of our new grid.

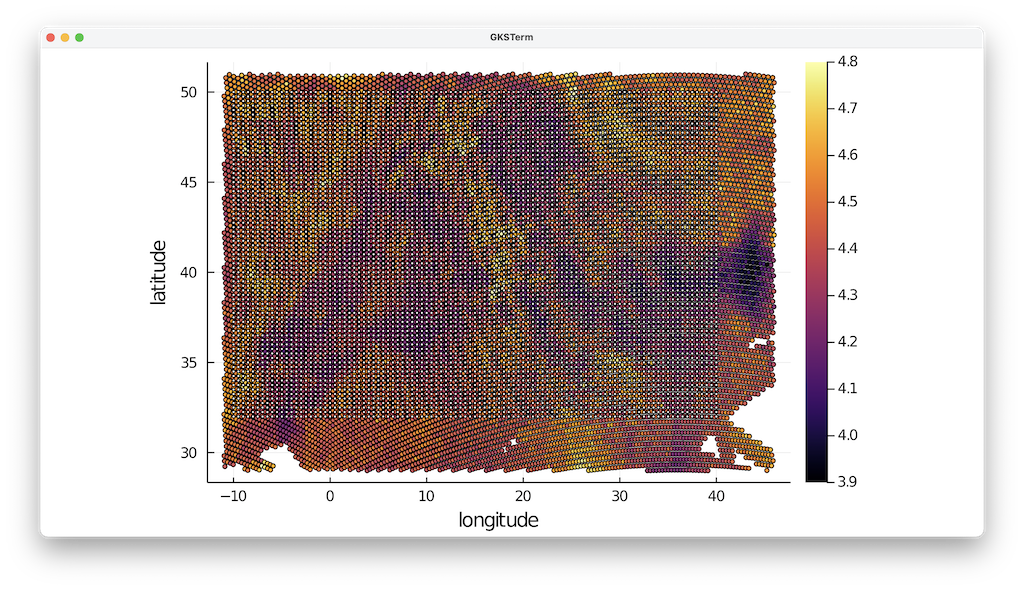

We can plot our new Lon/Lat grid on top of the previous data:

julia> scatter!(Lon[:,:,1],Lat[:,:,1],color=:white, markersize=1.5, markertype="+",legend=:none)

DataPoints_2

3.2 Interpolate to a regular grid

Next, we need a method to interpolate the irregular datapoints @ a certain depth level to the white data points.

There are a number of ways to do this:

  • Using the nearest point to the regular grid points (by using the nearest_point_indices function)
  • Employ GMT.jl
  • Use GeoStats.jl.

In this example, we will employ GeoStats. If you haven't installed it yet, do that with

julia> ]
(@v1.6) pkg> add GeoStats

We will first show how to interpolate data @ 50 km depth.

julia> using GeoStats
julia> Cgrid = CartesianGrid((size(Lon,1),size(Lon,2)),(minimum(Lon),minimum(Lat)),(Lon[2,2,2]-Lon[1,1,1],Lat[2,2,2]-Lat[1,1,1]))
101×73 CartesianGrid{2,Float64}
  minimum: Point(-10.0, 32.0)
  maximum: Point(40.5, 50.25)
  spacing: (0.5, 0.25)
julia> coord = PointSet([lon[ind]'; lat[ind]'])
12278 PointSet{2,Float64}
  └─Point(-11.0, 32.12)
  └─Point(-11.0, 36.36)
  └─Point(-10.99, 38.32)
  └─Point(-10.99, 49.77)
  └─Point(-10.98, 29.82)
  ⋮
  └─Point(45.97, 42.91)
  └─Point(45.98, 37.22)
  └─Point(45.99, 42.07)
  └─Point(45.99, 46.76)
  └─Point(45.99, 50.52)
julia> Geo   = georef((Vs=Vs[ind],), coord)
12278 MeshData{2,Float64}
  variables (rank 0)
    └─Vs (Float64)
  domain: 12278 PointSet{2,Float64}
julia> P = EstimationProblem(Geo, Cgrid, :Vs)
2D EstimationProblem
  data:      12278 MeshData{2,Float64}
  domain:    101×73 CartesianGrid{2,Float64}
  variables: Vs (Float64)
julia> S   = IDW(:Vs => (distance=Euclidean(),neighbors=2));
julia> sol = solve(P, S)

Here, we interpolated the data based on the Euclidean distance. Other methods, such as Kriging, can be used as well. Next, we can extract the data

julia>  sol_Vs = values(sol).Vs
julia>  Vs_2D  = reshape(sol_Vs, size(domain(sol)))

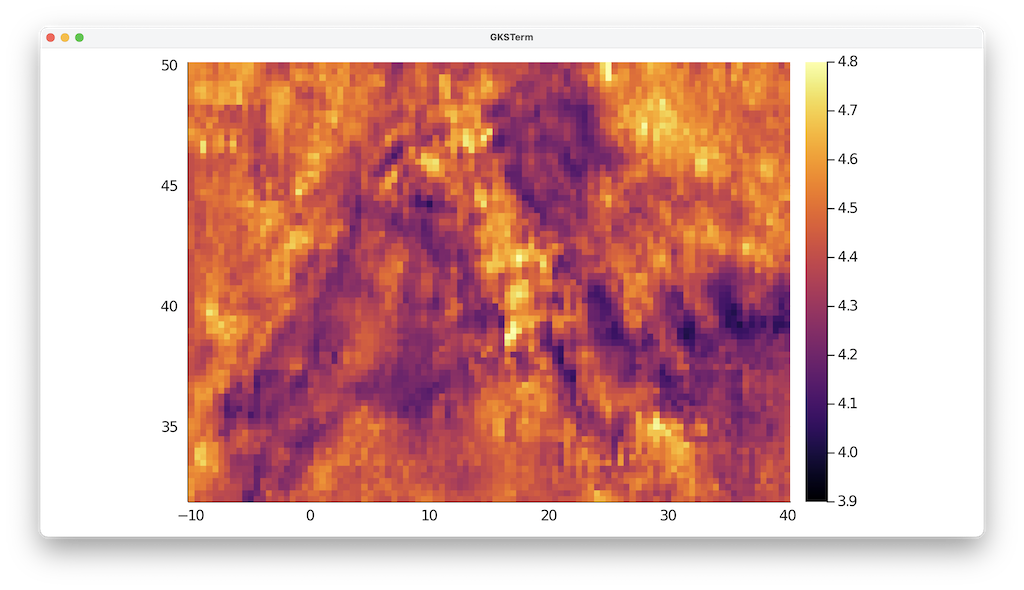

julia>  heatmap(Lon[:,1,1],Lat[1,:,1],Vs_2D', clims=(3.9, 4.8))

DataPoints_interpolated

The final step is to repeat this procedure for all depth levels:

julia> Vs_3D = zeros(size(Depth));
julia> for iz=1:size(Depth,3)
          println("Depth = $(Depth[1,1,iz])")
          ind   = findall(x -> x==Depth[1,1,iz], depth)
          coord = PointSet([lon[ind]'; lat[ind]'])
          Geo   = georef((Vs=Vs[ind],), coord)
          P     = EstimationProblem(Geo, Cgrid, :Vs)
          S     = IDW(:Vs => (distance=Euclidean(),neighbors=2));
          sol   = solve(P, S)
          sol_Vs= values(sol).Vs
          Vs_2D = reshape(sol_Vs, size(domain(sol)))
          Vs_3D[:,:,iz] = Vs_2D;
        end

4. Generate Paraview file

Once the 3D velocity matrix has been generated, producing a Paraview file is done with the following command

julia> using GeophysicalModelGenerator
julia> Data_set    =   GeoData(Lon,Lat,Depth,(Vs_km_s=Vs_3D,))
GeoData
  size  : (101, 73, 301)
  lon   ϵ [ -10.0 - 40.0]
  lat   ϵ [ 32.0 - 50.0]
  depth ϵ [ -350.0 km - -50.0 km]
  fields: (:Vs_km_s,)
julia> write_paraview(Data_set, "MeRe_ElSharkawy")
1-element Vector{String}:
 "MeRe_ElSharkawy.vts"

5. Plotting data in Paraview

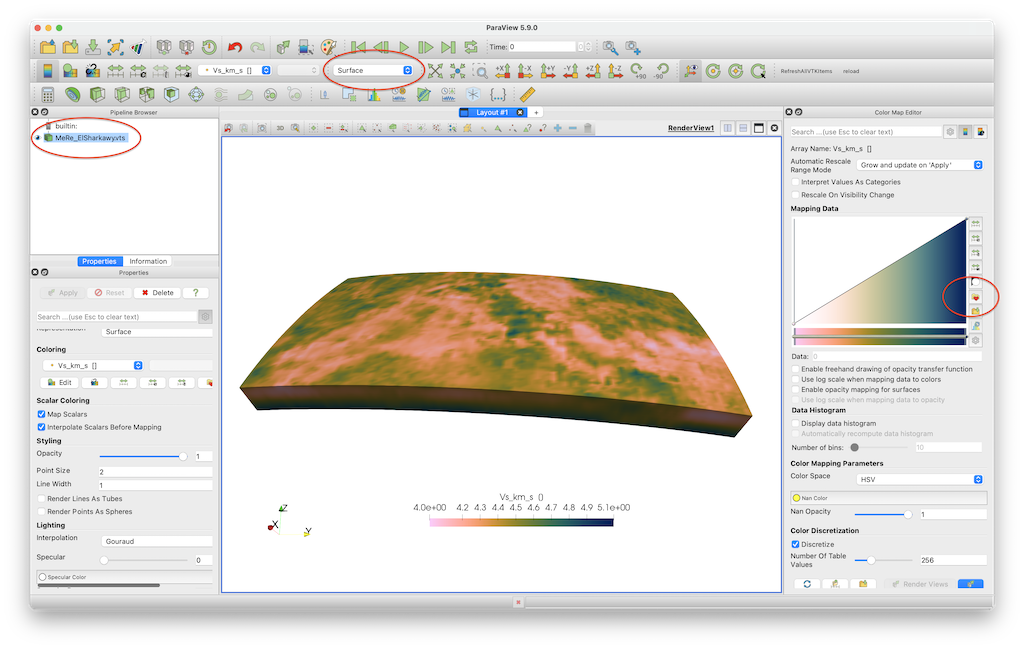

In paraview you can open the file and visualize it:

DataPoints_Paraview

Note that we employ the perceptually uniform color map Barlow, which you can download here.

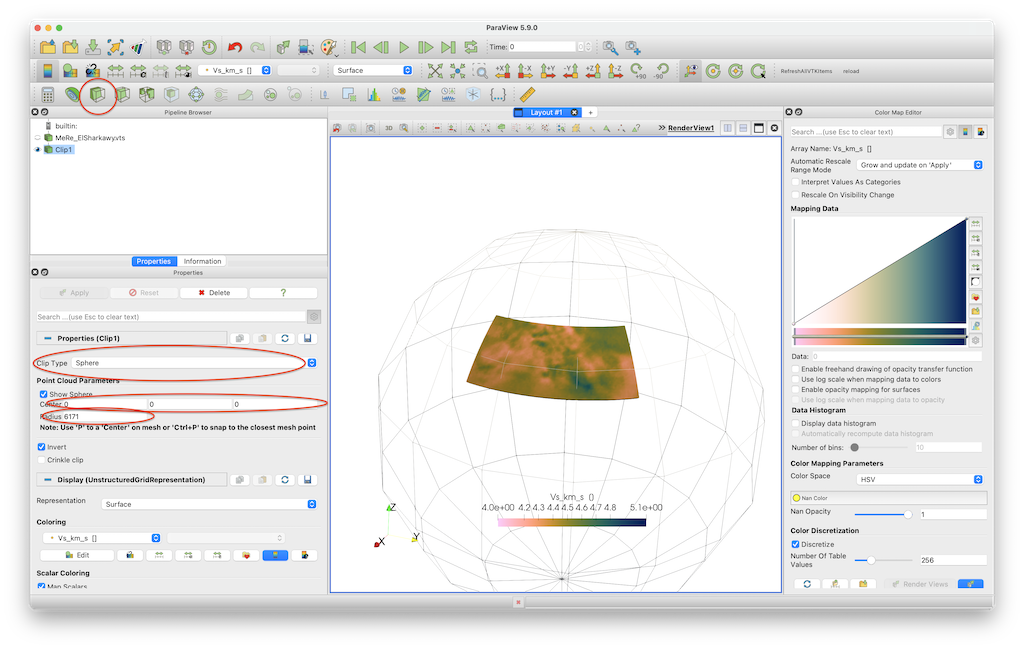

If you want to clip the data set @ 200 km depth, you need to select the Clip tool, select Sphere as a clip type, set the center to [0,0,0] and set the radius to 6171 (=radius earth - 200 km).

Tutorial_ElSharkawy_MeRe_DataPoints_Paraview_2

6. Julia script

The full julia script that does it all is given here. You need to be in the same directory as in the data file, after which you can run it in julia with

julia> include("MeRe_ElSharkawy.jl")
