Plot GPS data

Goal

The aim of this tutorial is to show you how you can download and plot GPS data, which are vector data. The example is based on a paper by Sanchez et al. (2018) https://essd.copernicus.org/articles/10/1503/2018/#section7

Steps

1. Download and import GPS data:

The data related to the paper can be downloaded from: https://doi.pangaea.de/10.1594/PANGAEA.886889 There you will find links to several data sets. Some are the data on the actual stations and some are interpolated data on a grid. Here, we will use the gridded data as an example (which interpolates the ), and will therefore download the following data sets:

Next, we have a look at the data themselves. We will use the package CSV.jl to load the comma-separated data. Let's have a look at the file ALPS2017_DEF_VT.GRD. If we open it with a text editor, we see that the data starts at line 18, and has the following format:

Column 1: Longitude [degrees]
Column 2: Latitude [degrees]
Column 3: Velocity in the height direction [m/a]
Column 4: Uncertainty of the height component [m/a]


 4.00    43.00    0.000067   0.000287
 4.30    43.00   -0.001000   0.000616
 4.60    43.00   -0.001067   0.000544

So we have 4 columns with data values, and the data is separated by spaces. We can load that in julia as:

julia> using CSV, GeophysicalModelGenerator
julia> data_file =   CSV.File("ALPS2017_DEF_VT.GRD",datarow=18,header=false,delim=' ');

We can read the numerical data from the file with:

julia> data                    =   ParseColumns_CSV_File(data_file, 4);
julia> lon_Vz, lat_Vz, Vz_vec  =   data[:,1], data[:,2], data[:,3];

2. Check & reshape vertical velocity

Let's have a look at the data, by plotting it:

julia> using Plots

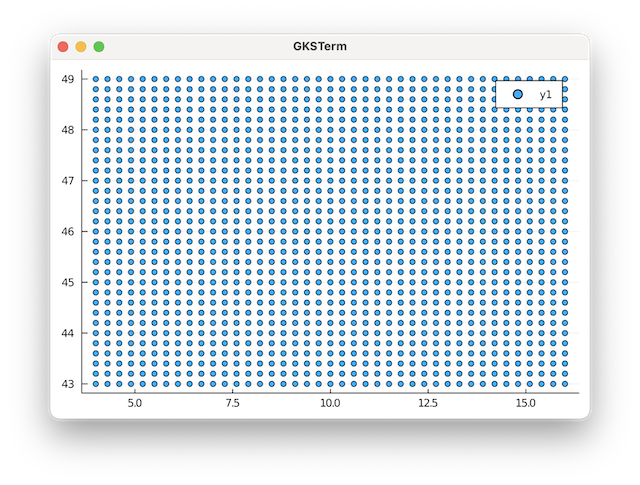

julia> Plots.scatter(lon_Vz,lat_Vz)

Tutorial_GPS_1

So clearly, this is a fully regular grid. We can determine the size of the grid with

julia> unique(lon_Vz)
41-element Vector{Float64}:
  4.0
  4.3
  4.6
  4.9
  5.2
  5.5
  5.8
  ⋮
 14.5
 14.8
 15.1
 15.4
 15.7
 16.0
julia> unique(lat_Vz)
31-element Vector{Float64}:
 43.0
 43.2
 43.4
 43.6
 43.8
 44.0
 44.2
  ⋮
 48.0
 48.2
 48.4
 48.6
 48.8
 49.0

So we have a 41 by 31 grid. GMG requires 3D matrixes for the data (as we want to plot the results in paraview in 3D). That is why we first initialize 3D matrixes for lon,lat,Vz:

julia> lon, lat, Vz            =   zeros(41,31,1),zeros(41,31,1),zeros(41,31,1)

And we can reshape the vectors accordingly:

julia> lon[:,:,1]              =   reshape(lon_Vz,(41,31))
julia> lat[:,:,1]              =   reshape(lat_Vz,(41,31))
julia> Vz[:,:,1]               =   reshape(Vz_vec,(41,31))

3. Load horizontal velocities

Next, we load the horizontal velocities from the file ALPS2017_DEF_HZ.GRD

julia> data_file                       =   CSV.File("ALPS2017_DEF_HZ.GRD",datarow=18,header=false,delim=' ');
julia> data                            =   ParseColumns_CSV_File(data_file, 6);
julia> lon_Hz, lat_Hz, Ve_Hz, Vn_Hz    =   data[:,1], data[:,2], data[:,3],  data[:,4];

Let's plot the data as well:

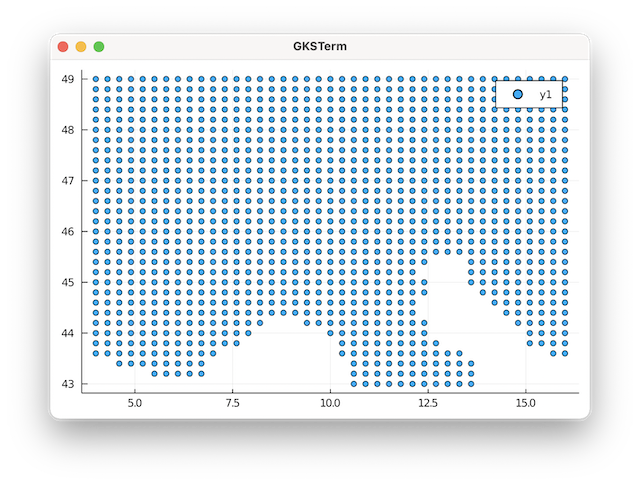

julia> Plots.scatter(lon_Hz,lat_Hz)

Tutorial_GPS_2

So it appears that the horizontal velocities are given on the same regular grid as well, but not in the water. This thus requires a bit more work. The strategy we take is to first define 2D matrixes with horizontal velocities with the same size as Vz which are initialized with NaN (not a number), which is treated specially by Paraview.

julia> Ve = ones(size(Vz))*NaN;
julia> Vn = ones(size(Vz))*NaN;

Next we loop over all points in lon_Hz,lat_Hz and place them into the 2D matrixes:

julia>  for i in eachindex(lon_Hz)
            ind = intersect(findall(x->x==lon_Hz[i], lon), findall(x->x==lat_Hz[i], lat))
            Ve[ind] .= Ve_Hz[i];
            Vn[ind] .= Vn_Hz[i];
        end

At this stage, we have horizontal and vertical velocities in units of m/yr. Yet, given the small velocities in the Alps, it makes more sense to have them in units of mm/yr:

julia> Vz = Vz*1000;
julia> Ve = Ve*1000;
julia> Vn = Vn*1000;

And the magnitude is:

julia> Vmagnitude  =   sqrt.(Ve.^2 + Vn.^2 + Vz.^2);

4. Interpolate topography on grid

At this stage we have the 3D velocity components on a grid. Yet, we don't have information yet about the elevation of the stations (as the provided data set did not give this). We could ignore that and set the elevation to zero, which would allow saving the data directly to paraview.

Yet, a better way is to load the topographic map of the area and interpolate the elevation to the velocity grid. We are using the GMT.jl to load the topographic data:

julia> using GMT
julia> Elevation =   gmtread("@earth_relief_01m.grd", limits=[3,17,42,50]);

Next, we use the Interpolations.jl package to interpolate the topography:

julia> using Interpolations
julia> interpol = LinearInterpolation((Elevation.x[1:end-1], Elevation.y[1:end-1]), Elevation.z');
julia> height   = interpol.(lon,lat)/1e3;

5. Saving and plotting in Paraview

At this stage, we have all we need. As the velocity is a vector field, we need to save it as a data structure with 3 components. When saving to paraview, GMG internally does a vector transformation. As this transformation does not retain the east/north components of the velocity field, it is a good idea to save them as separate fields so we can color the vectors accordingly in Paraview. Also note that we do not attach units to the vector fields, but we do have them for the scalar fields:

julia> GPS_Sanchez_grid = GeoData(lon,lat,height,(Velocity_mm_year=(Ve,Vn,Vz),V_north=Vn*mm/yr, V_east=Ve*mm/yr, V_vertical=Vz*mm/yr, Vmagnitude = Vmagnitude*mm/yr, Topography = height*km))
GeoData
  size  : (41, 31, 1)
  lon   ϵ [ 4.0 : 16.0]
  lat   ϵ [ 43.0 : 49.0]
  depth ϵ [ -2.6545 km : 3.426 km]
  fields: (:Velocity_mm_year, :V_north, :V_east, :V_vertical, :Vmagnitude, :Topography)

Saving this to paraview is as always:

julia> Write_Paraview(GPS_Sanchez_grid, "GPSAlps_Sanchez_2017_grid")

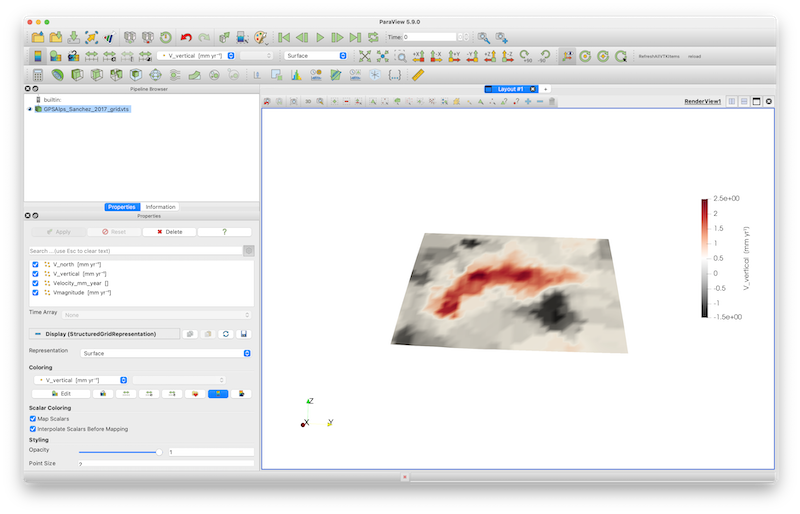

Opening and plotting the vertical field gives: Tutorial_GPS_3

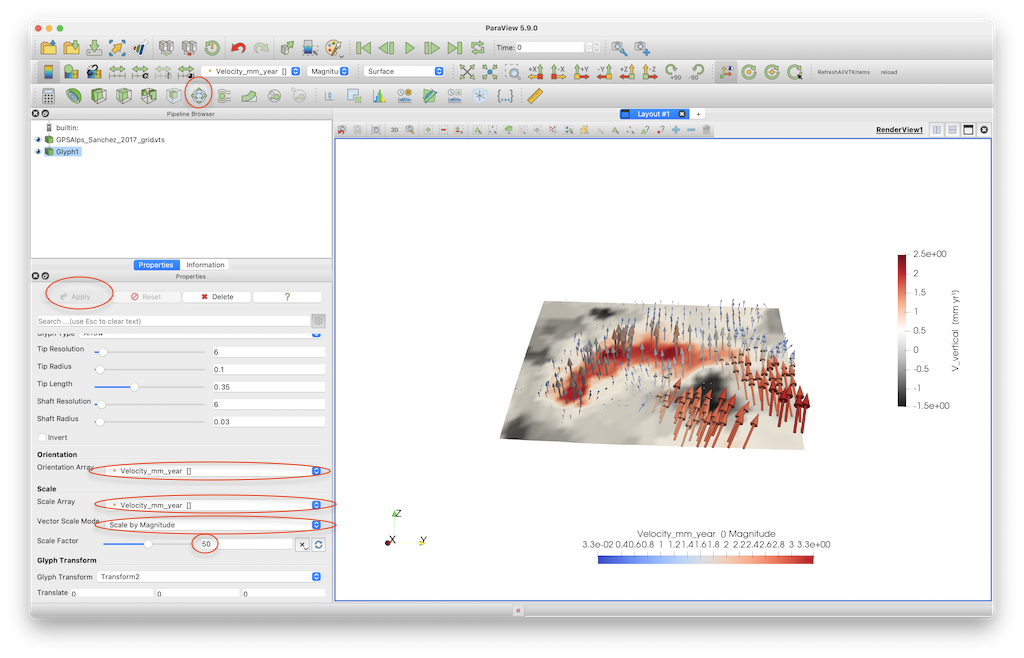

In order to plot the velocities as arrows, you need to select the Glyph tool (red circle). Also specify Velocity_mm_year () as both Orientation and Scale Array, and add 50 as scale factor. Once you push Apply it should look like: Tutorial_GPS_4

The arrows can now be colored by the individual velocity components or its magnitude.
