Interpolations

The interpolation routines in JustPIC target rectangular 2D and 3D grids and support both uniform and coordinate-vector refined grids.

The two standard transfer paths are documented separately:

• Vertex interpolation: vertex → particle → vertex.

• Centroid interpolation: centroid → particle → centroid.

Both pages show ghosted and physical-only array layouts.

Grid to particle

Information is transferred from nodal or staggered grids to particle-carried fields with linear interpolation. The one-dimensional linear interpolation kernel is

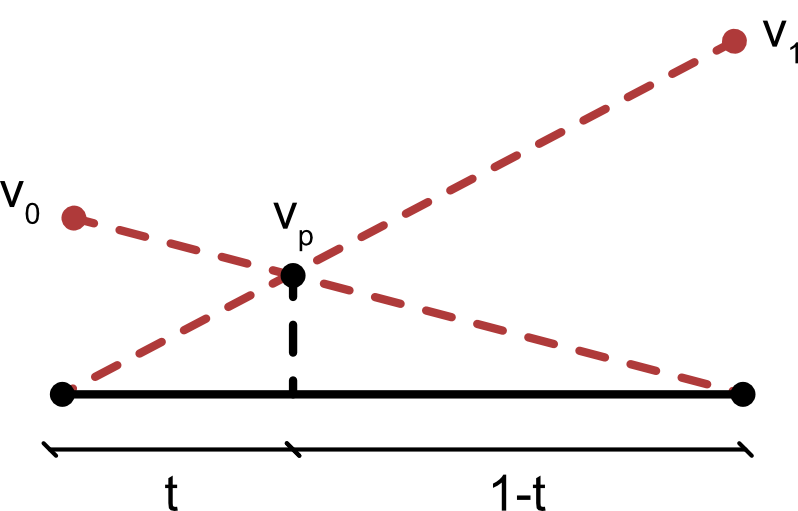

where the , , and are graphically described below.

Numerically, it is more appropriately implemented as a double fma as it is slightly more accurate than a naive implementation:

v_p = fma(t, v1, fma(-t, v0, v0))

Bi- and tri-linear interpolation over a rectangular or cubic cells is thus nothing else than a chain of lerp kernels along the different dimensions of the cell. For example, the bilinear interpolation requires two lerps along the left and right sides of the cell, followed by a lerp on the horizontal direction; and trilinear interpolation requires two bilinear kernels and one lerp.

N-linear interpolation is implemented recursively to keep the code dimension agnostic while staying friendly to compiler specialization.

We can interpolate an arbitrary field F onto particles with grid2particle!:

using JustPIC
# define model domain
nxcell, max_xcell, min_xcell = 24, 30, 12
n = 9
Lx  = Ly = 1.0
xvi = xv, yv = range(0, Lx, length=n), range(0, Ly, length=n)
dx, dy = step(xv), step(yv)
xc = range(dx / 2, Lx - dx / 2, length=n - 1)
yc = range(dy / 2, Ly - dy / 2, length=n - 1)
grid_vx = xv, range(first(yc) - dy, step=dy, length=n + 1)
grid_vy = range(first(xc) - dx, step=dx, length=n + 1), yv
particles = init_particles(
    JustPIC.CPU, nxcell, max_xcell, min_xcell, grid_vx, grid_vy
)
# field F at the grid
F = [y for x in particles.xvi[1], y in particles.xvi[2]]
# instantiate empty `CellArray`
Fp, = init_cell_arrays(particles, Val(1));
# interpolate F onto Fp
grid2particle!(Fp, F, particles);
# F is linear in y, so each active particle recovers its own y coordinate
active = particles.index.data
all(Fp.data[active] .≈ particles.coords[2].data[active])

# output

true

particles.xvi includes one ghost node on each side, so the compact call above expects F to use that same layout. For a field stored only on physical nodes, disable the shift in each unpadded direction:

F_physical = [y for x in xv, y in yv]
grid2particle!(Fp, F_physical, particles; ghost_1=false, ghost_2=false)

Particle to grid

Information on particles can be accumulated back to grid nodes with inverse distance weighting:

where the weight is  , with being the distance between the particle and the node, and a integer number.

On shared-memory hardware this typically requires atomics. JustPIC avoids that by looping over grid nodes and scanning only the neighboring particle cells that can contribute to each node.

This interpolation is handled by particle2grid!:

julia> particle2grid!(F, Fp, particles)

The same ghost_1, ghost_2, and ghost_3 keywords select whether each destination direction includes particle ghost nodes. They default to true.

particle2centroid! and the PIC/FLIP transfers take the same keywords; for the centroid routines they refer to the ghosted centroid grid particles.xci. centroid2particle! accepts them too (and ghosted as a shorthand for all three): with ghost centroids, particles sitting between a domain boundary and the first centroid are interpolated from them; without, those particles use the nearest physical cell.

Related high-level helpers in this workflow are particle2centroid!, centroid2particle!, update_phase_ratios!, subgrid_diffusion!, and subgrid_diffusion_centroid!. The two subgrid-diffusion routines read their T_grid through grid2particle!/centroid2particle! and so expect the ghosted vertex and centroid layouts respectively, while ΔT_grid carries one ghost node per side, matching size(particles.index).
