1. Example 1: Falling sphere

This is a first example that illustrates how to build a setup using the LaMEM.jl package, run it and visualize the results, all without leaving julia.

We start with loading the packages we need:

julia> using LaMEM, GeophysicalModelGenerator, GLMakie

The GeophysicalModelGenerator package can be used to generate model setups, and GLMakie drives the interactive viewer that we use below to look at the setup and the results. On a machine without a display, use CairoMakie instead; everything works the same, except that the 3D panel stays empty.

1.1 Define model setup

Next, we define a general model setup, in which we specify the units with which we work (for most cases, you'll want to use the default GEO units), the size of the computational box and various timestepping parameters. In this case, we use a multigrid solver.

julia> model  = Model(Grid(nel=(16,16,16), x=[-1,1], y=[-1,1], z=[-1,1]),
          Time(nstep_max=20, dt_min=1e-3, dt=1, dt_max=10, time_end=100),
          Solver(stokes_solver="coupled_mg", num_mg_levels=2),
          Output(out_dir="example_1"))
LaMEM Model setup
|
|-- Scaling             :  GeoParams.Units.GeoUnits{GEO}
|-- Grid                :  nel=(16, 16, 16); xϵ(-1.0, 1.0), yϵ(-1.0, 1.0), zϵ(-1.0, 1.0)
|-- Time                :  nstep_max=20; nstep_out=1; time_end=100.0; dt=1.0
|-- Boundary conditions :  noslip=[0, 0, 0, 0, 0, 0]
|-- Solution parameters :  eta_min=1.0e18; eta_max=1.0e25; eta_ref=1.0e20; act_temp_diff=0
|-- Solver options      :  multigrid solver; coarse grid solver=direct; 2 levels
|-- Model setup options :  Type=files;
|-- Output options      :  filename=output; pvd=1; avd=0; surf=0
|-- Materials           :  0 phases;

Note that each of the fields within Model has many additional and adjustable parameters. You can view that by typing:

julia> model.Time
LaMEM Timestepping parameters:
  time_end        = 100.0
  dt              = 1.0
  dt_min          = 0.001
  dt_max          = 10.0
  dt_out          = 0.2
  inc_dt          = 0.1
  CFL             = 0.5
  CFLMAX          = 0.8
  nstep_max       = 20
  nstep_out       = 1
  nstep_rdb       = 100
  nstep_ini       = 1
  time_tol        = 1.0e-8

1.2 Specify material properties

Once this is specified, we need to set material properties for each of the Phases we will consider in the simulation. This can be done with the Phase structure. First, we define two phases

julia> rm_phase!(model)
julia> matrix = Phase(ID=0,Name="matrix",eta=1e20,rho=3000)
Phase 0 (matrix):
  rho    = 3000.0
  eta    = 1.0e20
julia> sphere = Phase(ID=1,Name="sphere",eta=1e23,rho=3200)
Phase 1 (sphere):
  rho    = 3200.0
  eta    = 1.0e23

and add them to the model with:

julia> add_phase!(model, sphere, matrix)

1.3 Set initial model geometry

We also need to specify an initial model geometry. The julia package GeophysicalModelGenerator has a number of functions for that, which can be used here. For the current setup, we just add a sphere:

julia> add_sphere!(model,cen=(0.0,0.0,0.0), radius=0.5)

It is often useful to look at the initial model setup before starting a simulation, which you can do with view_model:

julia> view_model(model)

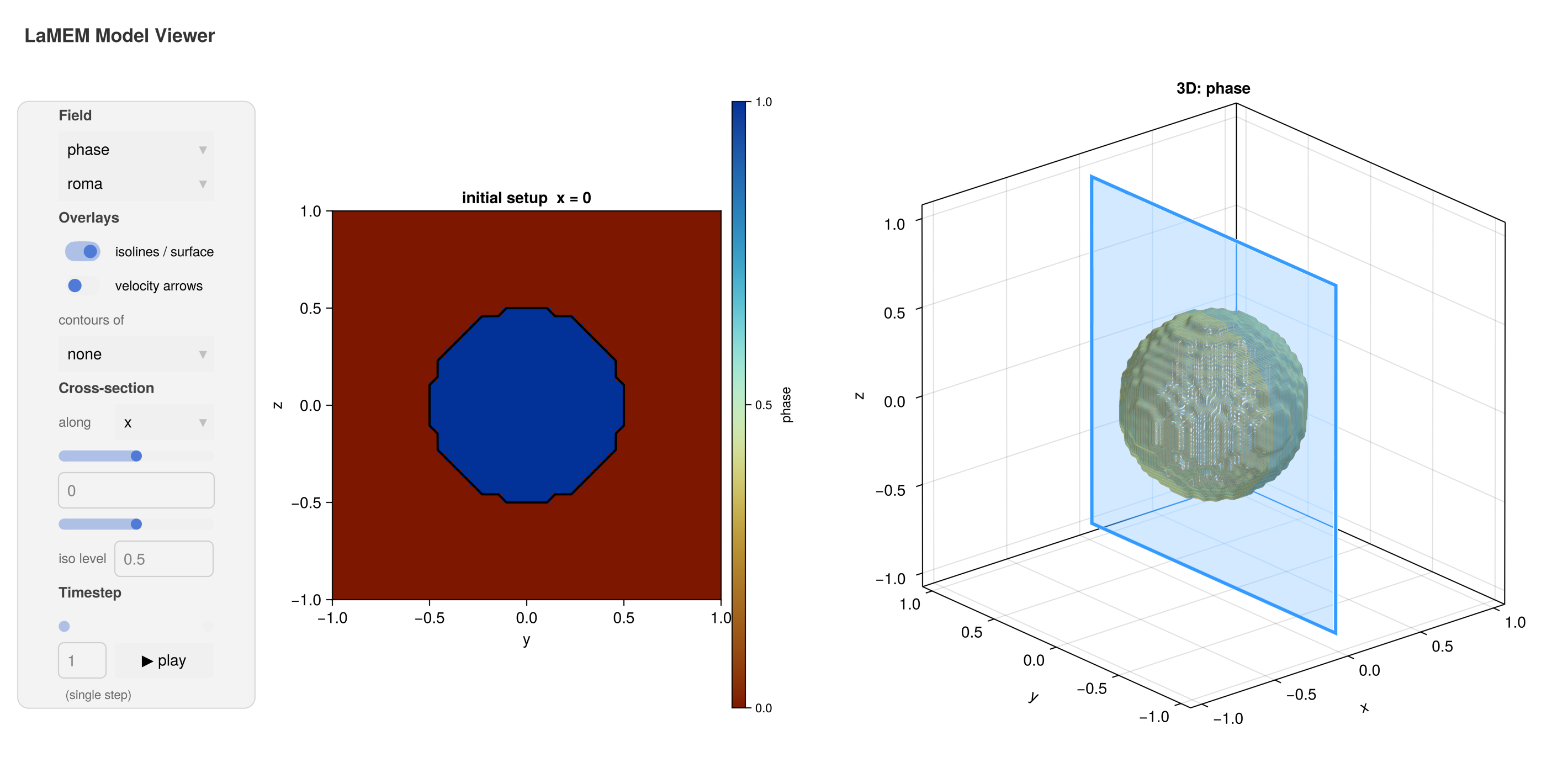

This opens the LaMEM Model Viewer: a cross-section through the setup on the left, a 3D view of the same field on the right, and a panel of controls down the side. The menu at the top lists the fields that the setup has – here phase, temperature and plast_strain – and the sliders move the cross-section through the model and pick the level of the isosurface. The blue plane in the 3D view marks where the section is cut.

Nothing has been run at this point: the viewer reads the setup straight from model.

If you prefer a single figure to an interactive window, the plotting recipes give you one:

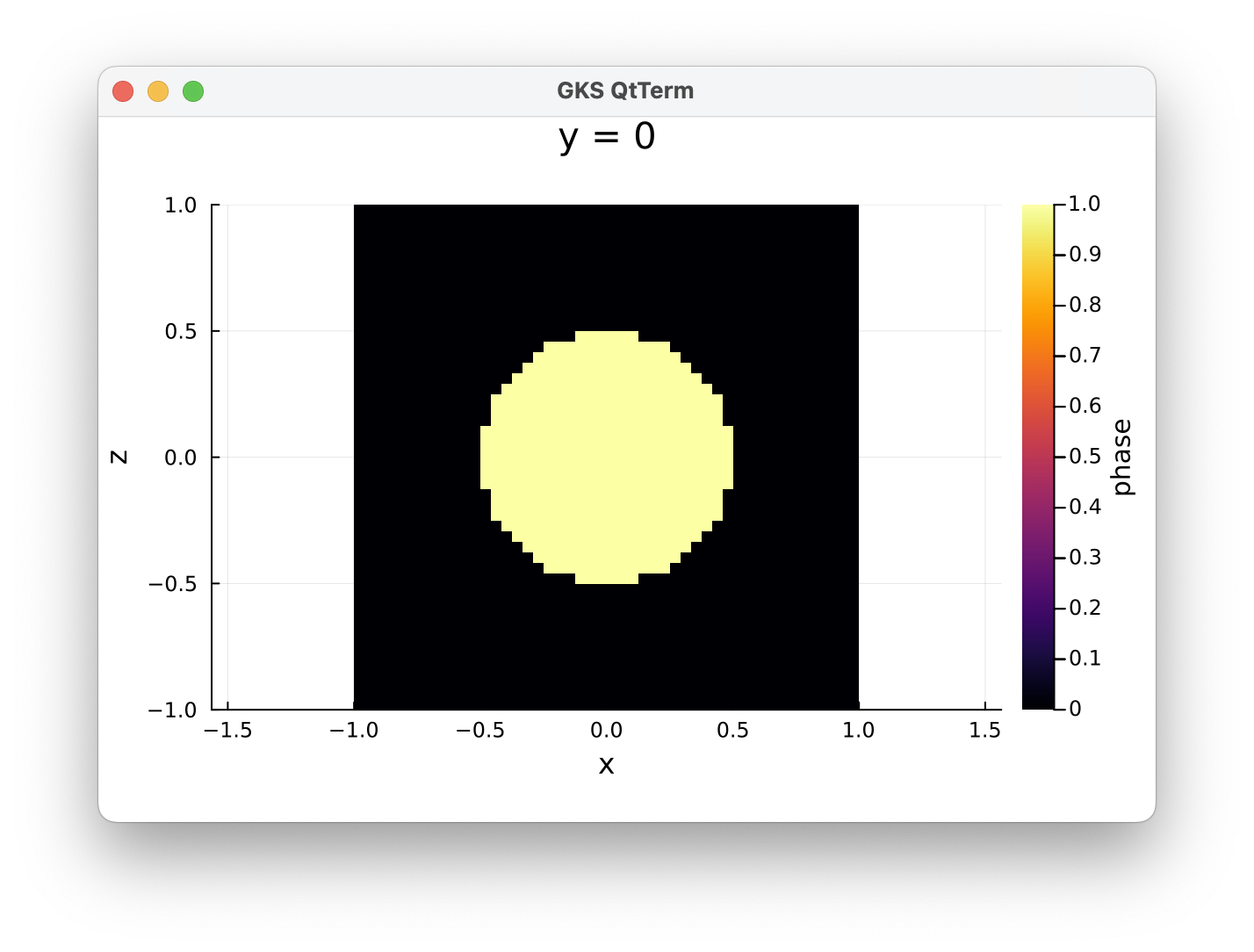

julia> crosssection(model, field=:phase, y=0)

In the initial setup we define two fields: :phase which defines the rocktypes and :temperature which has the initial temperature. They are stored as 3D arrays in model.Grid.Phases and model.Grid.Temp:

julia> model.Grid
LaMEM grid with constant Δ:
  nel         : ([16], [16], [16])
  marker/cell : (3, 3, 3)
  x           ϵ [-1.0 : 1.0]
  y           ϵ [-1.0 : 1.0]
  z           ϵ [-1.0 : 1.0]
  Phases      : range ϵ [0 - 1]
  Temp        : range ϵ [0.0 - 0.0]

1.4 Run LaMEM

At this stage we are ready to run a LaMEM simulation which can simply be done with the run_lamem command. By default, it will run on one processor. If you want to run this in parallel, you can specify the number of cores you want to use. Please note that running things in parallel is only worth the effort for large resolutions; for smaller setups it will be faster on one processor:

julia> run_lamem(model,1)
Saved file: Model3D.vts
Writing LaMEM marker file -> ./markers/mdb.00000000.dat
--------------------------------------------------------------------------
                   Lithosphere and Mantle Evolution Model
     Compiled: Date: Apr  7 2023 - Time: 22:11:23
     Version : 1.2.4
--------------------------------------------------------------------------
        STAGGERED-GRID FINITE DIFFERENCE CANONICAL IMPLEMENTATION
--------------------------------------------------------------------------
Parsing input file : output.dat
Finished parsing input file : output.dat
--------------------------------------------------------------------------
Scaling parameters:
   Temperature : 1000. [C/K]
   Length      : 1e+06 [m]
   Viscosity   : 1e+20 [Pa*s]
   Stress      : 10. [Pa]
--------------------------------------------------------------------------
Time stepping parameters:
   Simulation end time          : 100. [Myr]
   Maximum number of steps      : 20
   Time step                    : 1. [Myr]
   Minimum time step            : 0.001 [Myr]
   Maximum time step            : 10. [Myr]
   Time step increase factor    : 0.1
   CFL criterion                : 0.5
   CFLMAX (fixed time steps)    : 0.8
   Output every [n] steps       : 1
   Output [n] initial steps     : 1
--------------------------------------------------------------------------
--------------------------------------------------------------------------

1.5 Visualize results

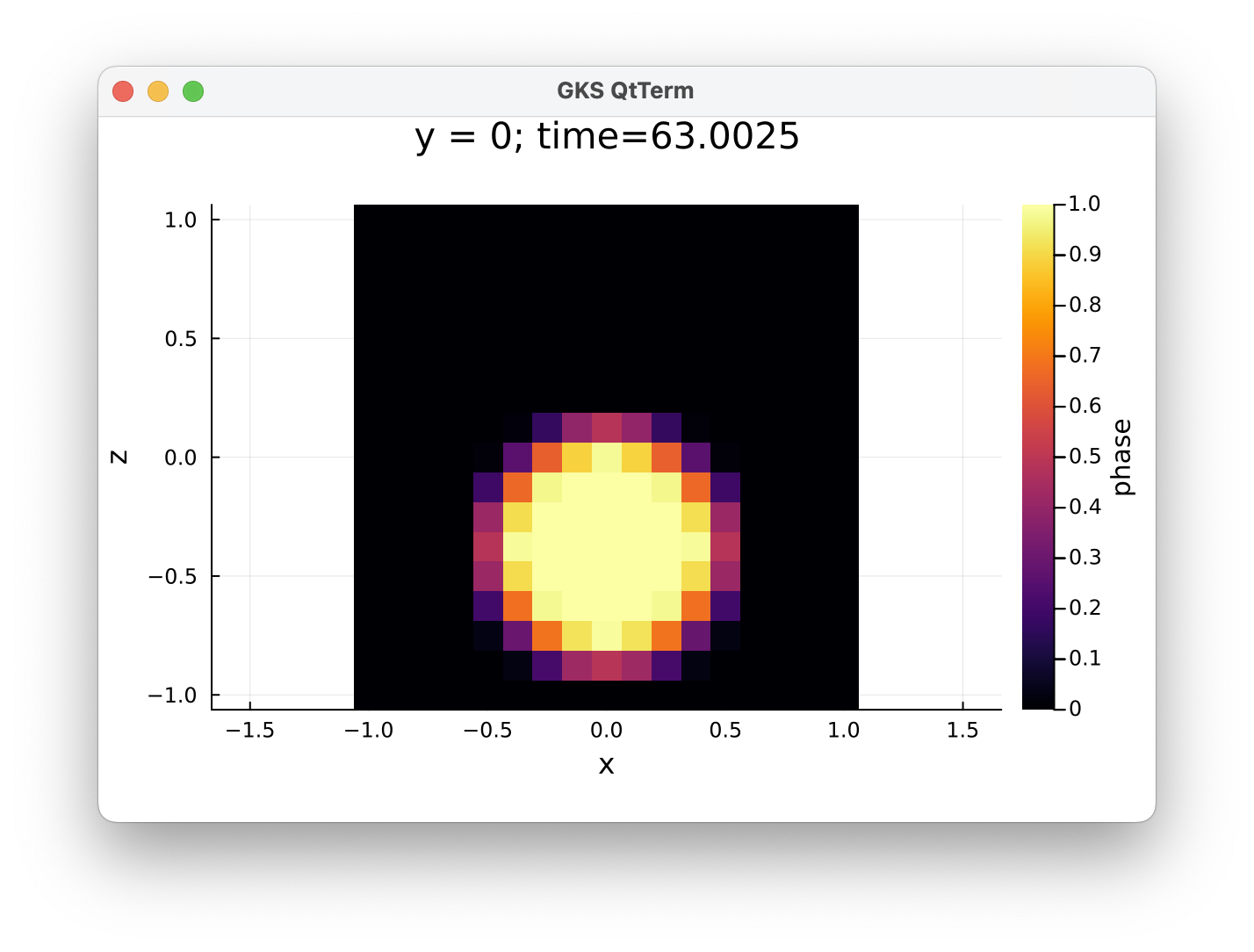

Once the simulation is done, view_model shows its results. It is the same window as before, but the timestep slider is now live: drag it, type a number into the box beside it, or press ▶ play to animate the simulation.

julia> view_model(model, field=:phase, arrows=true)

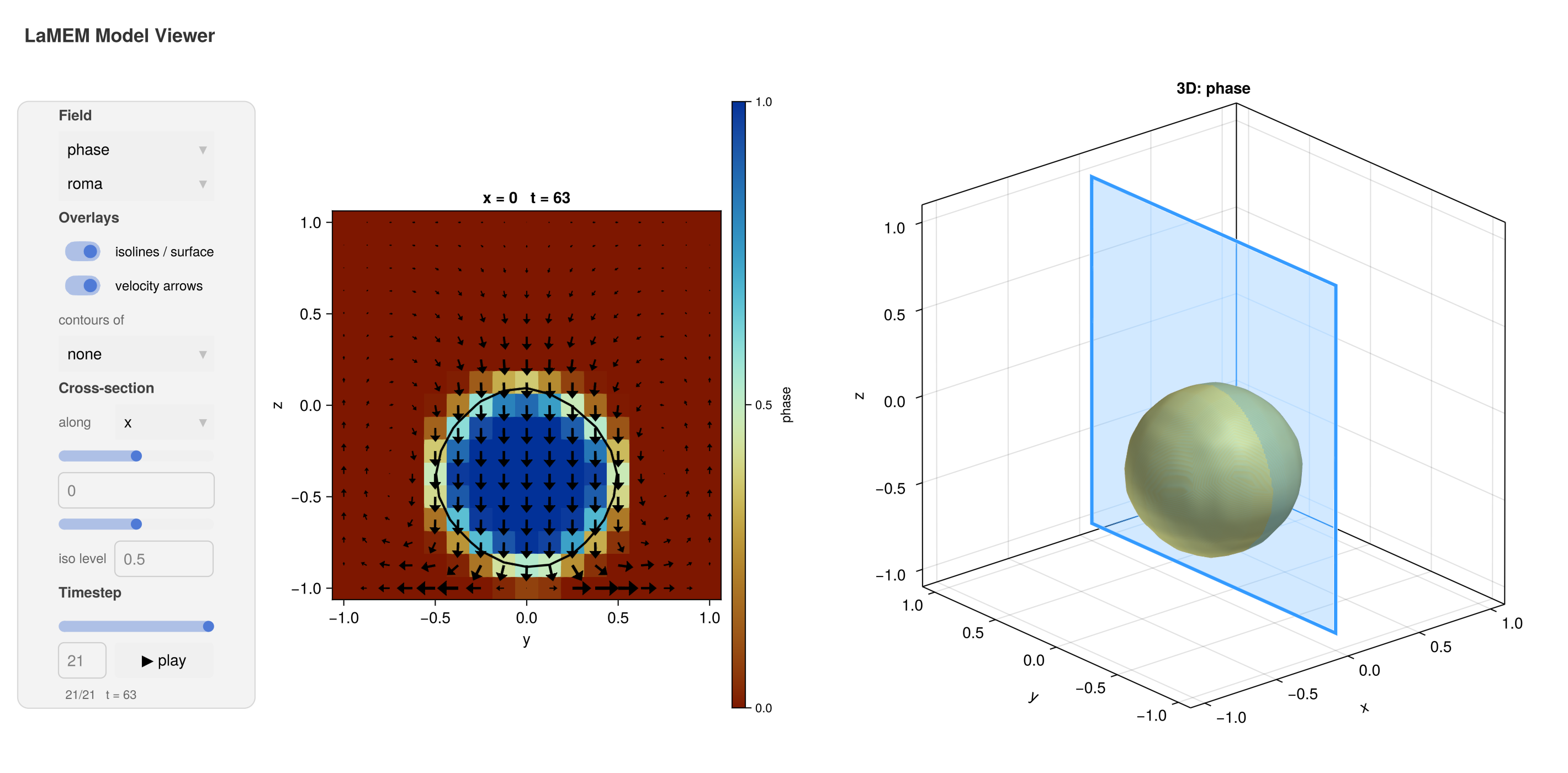

The sphere has sunk, and the velocity arrows show the flow it drives around itself. arrows=true switches those on from the start; the toggles in the panel do the same while the window is open.

You can also write the animation to a file, which needs no interactive window:

julia> save_movie("falling_sphere.mp4", model, field=:phase)

See Interactive viewer for the rest of what the window can do – contours of a second field, the colormap, choosing which axis to cut along – and Plotting with Makie for the recipes that produce a single figure instead.

Alternatively, you can visualize the results with Paraview. Change to the directory where you did the simulation:

julia> cd(model.Output.out_dir)
julia> readdir()
25-element Vector{String}:
 "Model3D.vts"
 "Timestep_00000000_0.00000000e+00"
 "Timestep_00000001_1.10000000e+00"
 "Timestep_00000002_2.31000000e+00"
 "Timestep_00000003_3.64100000e+00"
 "Timestep_00000004_5.10510000e+00"
 "Timestep_00000005_6.71561000e+00"
 ⋮
 "Timestep_00000017_4.45991731e+01"
 "Timestep_00000018_5.01590904e+01"
 "Timestep_00000019_5.62749995e+01"
 "Timestep_00000020_6.30024994e+01"
 "markers"
 "output.dat"
 "output.pvd"

And you can open output.pvd with paraview. If your system recognizes that *.pvd files should be opened with paraview, you can do that with

julia> ;
shell> open output.pvd

Otherwise, start paraview manually and open the file.
