Creating 3D numerical model setups ​

Aim ​

The aim of this tutorial is to show you how to create 3D numerical model setups that can be used as initial setups for other codes.

3D Subduction setup ​

Lets start with creating a 3D model setup in Cartesian coordinates, which uses the CartData data structure

julia
using GeophysicalModelGenerator

nx,ny,nz = 512,512,128
x = range(-1000,1000, nx);
y = range(-1000,1000, ny);
z = range(-660,0,    nz);
Grid = CartData(xyz_grid(x,y,z));

Now we create an integer array that will hold the Phases information (which usually refers to the material or rock type in the simulation)

julia
Phases = fill(2,nx,ny,nz);

In many (geodynamic) models, one also has to define the temperature, so lets define it as well

julia
Temp = fill(1350.0, nx,ny,nz);

Simple free subduction setup ​

Much of the options are explained in the 2D tutorial, which can directly be transferred to 3D. Therefore, we will start with a simple subduction setup, which consists of a horizontal part that has a mid-oceanic ridge on one explained

We use a lithospheric structure, which can be specified with the LithosphericPhases structure, where you can indicate Layers (the thickness of each lithospheric layer, starting from the top), and Phases the phases of the corresponding layers. Note that if the lowermost layer has the same phase as the mantle, you can define Tlab as the lithosphere-asthenosphere boundary which will automatically adjust the phase depending on temperature

julia
lith = LithosphericPhases(Layers=[15 45 10], Phases=[0 1 2], Tlab=1250)
add_box!(Phases, Temp, Grid; xlim=(-800.0,0.0), ylim=(-400, 400.0), zlim=(-80.0, 0.0), phase = lith,
        Origin=(-0,0,0),
        T=SpreadingRateTemp(SpreadingVel=3, MORside="right"), StrikeAngle=30);

And an an inclined part:

julia
add_box!(Phases, Temp, Grid; xlim=(0.0,300.0), ylim=(-400.0, 400.0), zlim=(-80.0, 0.0), phase = lith,
        Origin=(-0,0,0),
        T=McKenzie_subducting_slab(Tsurface=0,v_cm_yr=3), DipAngle=30, StrikeAngle=30);

Add them to the CartData dataset:

julia
Grid = addfield(Grid,(;Phases, Temp))
CartData
    size    : (512, 512, 128)
    x       ϵ [ -1000.0 : 1000.0]
    y       ϵ [ -1000.0 : 1000.0]
    z       ϵ [ -660.0 : 0.0]
    fields  : (:Z, :Phases, :Temp)

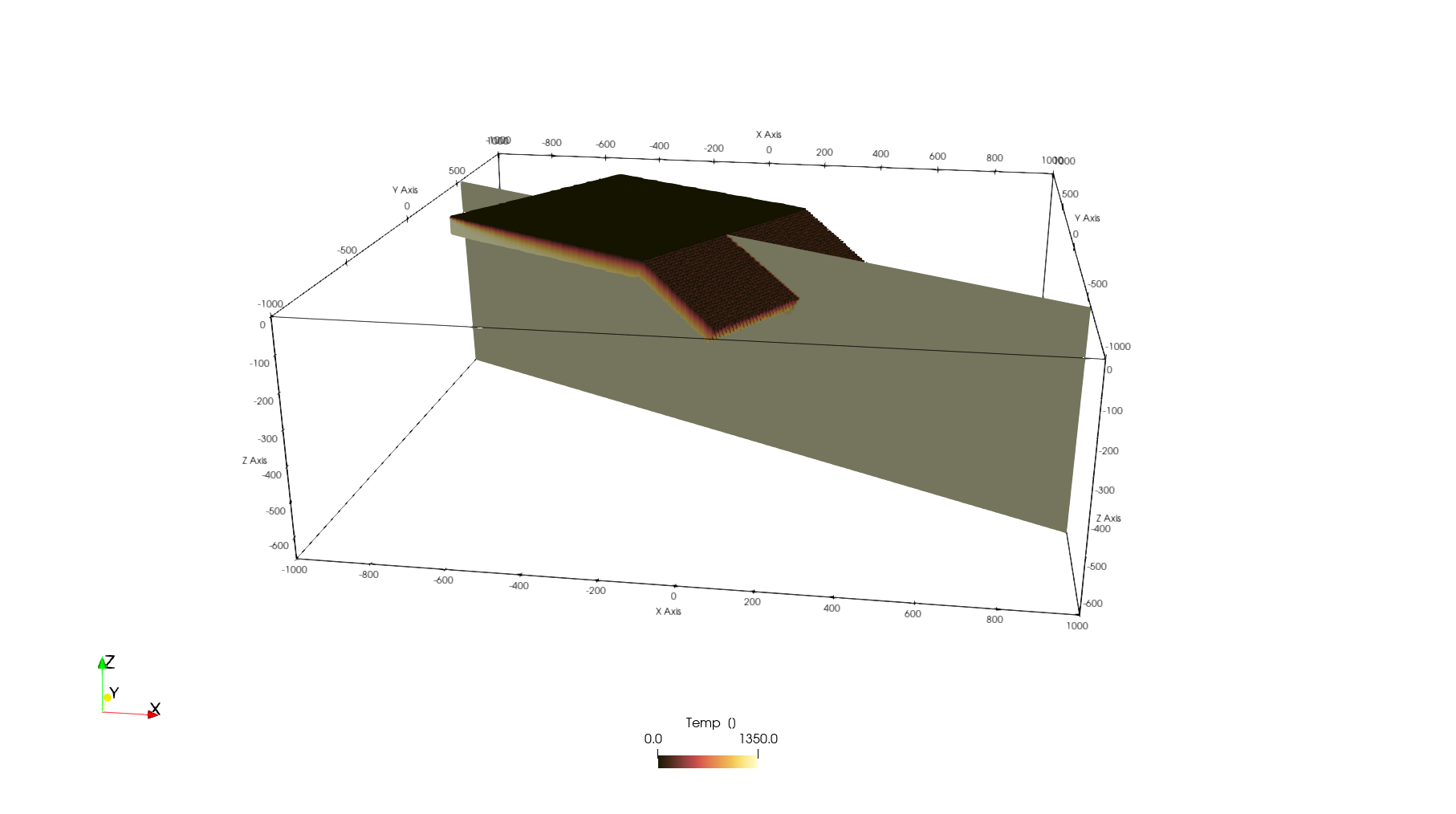

Which looks like

julia
write_paraview(Grid,"Grid3D_FreeSubduction");
Saved file: Grid3D_FreeSubduction.vts

More sophisticated setup ​

Next, lets consider a somewhat more complicated setup with curved slabs, an overriding plate and a thermal structure that transitions from half-space cooling to a slab that is heated from both sides

julia
nx,ny,nz = 512,512,128
x = range(-1000,1000, nx);
y = range(-1000,1000, ny);
z = range(-660,0,    nz);
Grid = CartData(xyz_grid(x,y,z));

Phases = fill(2,nx,ny,nz);
Temp = fill(1350.0, nx,ny,nz);

Overriding plate with a 30 km crust and mantle lithosphere that where T<1250 celsius

julia
lith_cont = LithosphericPhases(Layers=[30 200 50], Phases=[3 4 2], Tlab=1250)
add_box!(Phases, Temp, Grid; xlim=(400.0,1000.0), ylim=(-1000.0, 0.0), zlim=(-240.0, 0.0), phase = lith_cont, T=HalfspaceCoolingTemp(Age=150));
add_box!(Phases, Temp, Grid; xlim=(200.0,1000.0), ylim=(-1000.0, 0.0), zlim=(-80.0, 0.0), phase = lith_cont,  T=HalfspaceCoolingTemp(Age=150));

lith_cont = LithosphericPhases(Layers=[30 200 10], Phases=[5 6 2], Tlab=1250)
add_box!(Phases, Temp, Grid; xlim=(400.0,1000.0), ylim=(0.0, 1000.0),    zlim=(-240.0, 0.0), phase = lith_cont, T=HalfspaceCoolingTemp(Age=200));
add_box!(Phases, Temp, Grid; xlim=(200.0,1000.0), ylim=(0.0, 1000.0),    zlim=( -80.0, 0.0), phase = lith_cont, T=HalfspaceCoolingTemp(Age=200));

Define an oceanic plate with ridge

julia
v_spread_cm_yr = 3      #spreading velocity
lith = LithosphericPhases(Layers=[15 45 10], Phases=[0 1 2], Tlab=1250)
add_box!(Phases, Temp, Grid; xlim=(-800.0 , 200.0), ylim=(-1000.0, -400.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3));
add_box!(Phases, Temp, Grid; xlim=(-1000.0,-800.0), ylim=(-1000.0, -400.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3,MORside="right"));

add_box!(Phases, Temp, Grid; xlim=(-700.0,  200.0), ylim=(-400.0, 200.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3));
add_box!(Phases, Temp, Grid; xlim=(-1000.0,-700.0), ylim=(-400.0, 200.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3,MORside="right"));

add_box!(Phases, Temp, Grid; xlim=(-650.0,  200.0), ylim=(200.0, 1000.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3));
add_box!(Phases, Temp, Grid; xlim=(-1000.0,-650.0), ylim=(200.0, 1000.0), zlim=(-80.0, 0.0), phase = lith, T=SpreadingRateTemp(SpreadingVel=3,MORside="right"));

Subducting parts of the oceanic plate

The starting thermal age at the trench is that of the horizontal part of the oceanic plate (which is different along-trench, given that we have 3 mid oceanic ridge segments!): We want to add a smooth transition from a halfspace cooling 1D thermal profile to a slab that is heated by the surrounding mantle below a decoupling depth d_decoupling.

julia
AgeTrench_Myrs = 1000*1e3/(v_spread_cm_yr/1e2)/1e6    #plate age @ trench
trench1 = Trench(Start=(200.0,-1000.0), End=(200.0,-400.0), Thickness=90.0, θ_max=45.0, Length=600, Lb=200, WeakzoneThickness=15, WeakzonePhase=7, d_decoupling=175);
T_slab  = LinearWeightedTemperature( F1=HalfspaceCoolingTemp(Age=AgeTrench_Myrs), F2=McKenzie_subducting_slab(Tsurface=0,v_cm_yr=v_spread_cm_yr, Adiabat = 0.0))
add_slab!(Phases, Temp, Grid, trench1, phase = lith, T=T_slab);
julia
AgeTrench_Myrs = (900)*1e3/(v_spread_cm_yr/1e2)/1e6    #plate age @ trench
trench1 = Trench(Start=(200.0,-400.0), End=(200.0,200.0), Thickness=90.0, θ_max=45.0, Length=600, Lb=200, WeakzoneThickness=15, WeakzonePhase=7, d_decoupling=175);
T_slab  = LinearWeightedTemperature( F1=HalfspaceCoolingTemp(Age=AgeTrench_Myrs), F2=McKenzie_subducting_slab(Tsurface=0,v_cm_yr=v_spread_cm_yr, Adiabat = 0.0))
add_slab!(Phases, Temp, Grid, trench1, phase = lith, T=T_slab);
julia
AgeTrench_Myrs = 850e3/(v_spread_cm_yr/1e2)/1e6    #plate age @ trench
trench1 = Trench(Start=(200.0,200.0), End=(200.0,1000.0), Thickness=90.0, θ_max=45.0, Length=600, Lb=200, WeakzoneThickness=15, WeakzonePhase=7, d_decoupling=175);
T_slab  = LinearWeightedTemperature( F1=HalfspaceCoolingTemp(Age=AgeTrench_Myrs), F2=McKenzie_subducting_slab(Tsurface=0,v_cm_yr=v_spread_cm_yr, Adiabat = 0.0))
add_slab!(Phases, Temp, Grid, trench1, phase = lith, T=T_slab);

Finally, it is often nice to see the deformation of the plate when it subducts. A simple way to do that is to put a stripes on top using add_stripes!, which has the same phase as the subducting crust.

julia
add_stripes!(Phases, Grid; stripAxes = (1,1,0), phase = ConstantPhase(0), stripePhase = ConstantPhase(9), stripeWidth=50, stripeSpacing=200)

Finally, we can add all this to the CartData dataset:

julia
Grid = addfield(Grid,(;Phases, Temp))
write_paraview(Grid,"Grid3D_Ridges");
Saved file: Grid3D_Ridges.vts

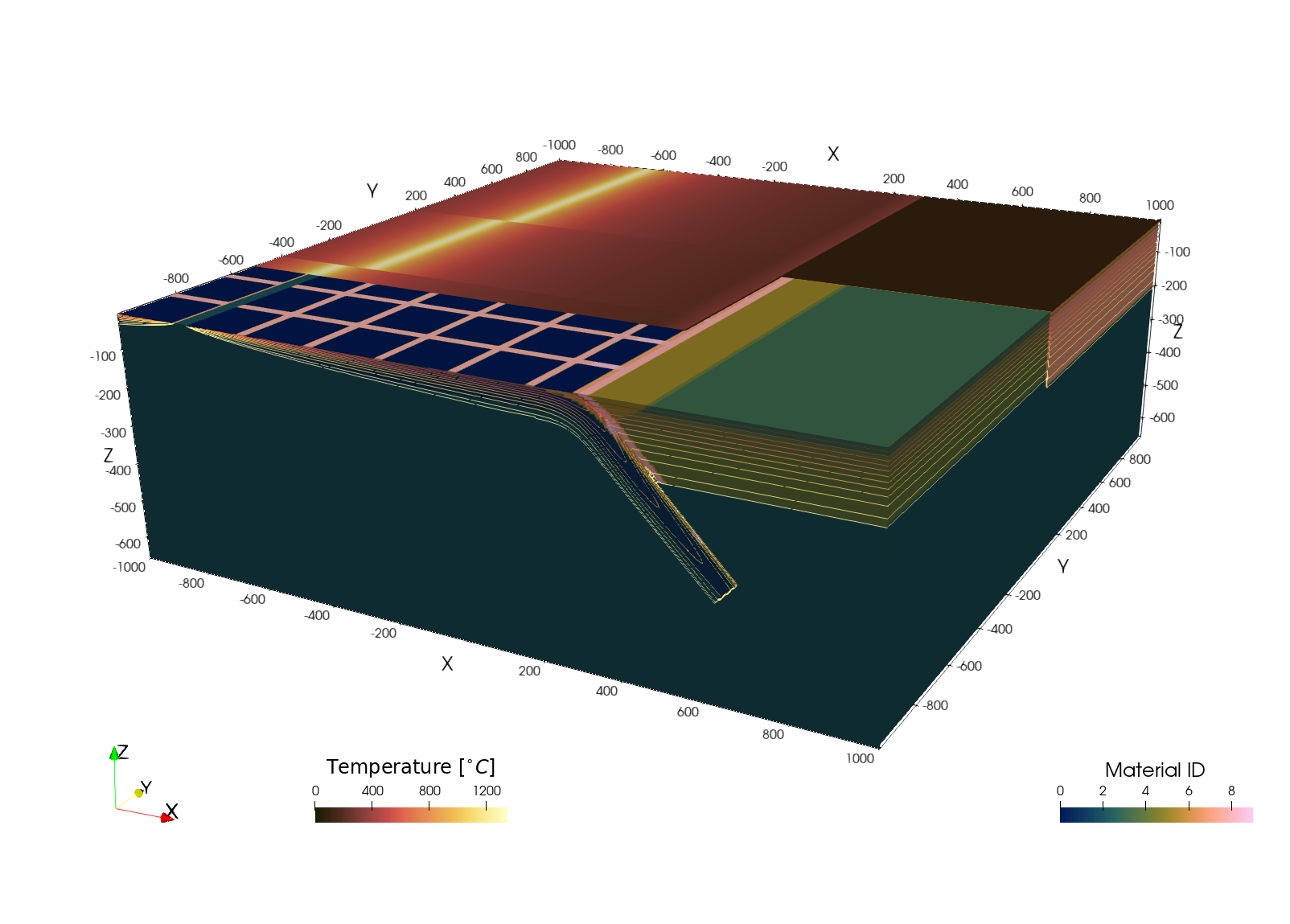

And the resulting image looks like
