Zircon age parameterizations

Methods

Zircons are one of the ways in which we can date the age & activity of magmatic systems. Here, we provide a computational routine that computes the zircon age distribution from temperature-time paths

GeoParams.ZirconAges.ZirconAgeData Type

ZirconAgeData

Struct that holds default parameters for the calculations

source

Computational routines

There is one main routine with which you can compute zircon age probability density functions from a range of temperature-ime paths:

GeoParams.ZirconAges.compute_zircon_age_PDF Function

time_Ma, PDF_zircons, time_Ma_average, PDF_zircon_average, time_years, prob, ages_eruptible, number_zircons, T_av_time, T_sd_time, cumPDF = compute_zircon_age_PDF(time_years_vecs::Vector{Vector}, Tt_paths_Temp_vecs::Vector{Vector}; ZirconData::ZirconAgeData = ZirconAgeData(), bandwidth=bandwidth, n_analyses=300)

This computes the PDF (probability density function) with zircon age data from Vectors with Tt-paths

source

This, in turn, calls two other routines:

GeoParams.ZirconAges.compute_zircons_Ttpath Function

prob, ages_eruptible, number_zircons, T_av_time, T_sd_time, cumPDF =  compute_zircons_Ttpath(time_years::AbstractArray{Float64,1}, Tt_paths_Temp::AbstractArray{Float64,2}; ZirconData::ZirconAgeData)

This computes the number of zircons produced from a series of temperature-time path's. The Tt-paths are stored in a 2D matrix Tt_paths_Temp with rows being the temperature at time time_years.

Input:

• time_years : vector of length nt with the time in years (since the beginning of the simulation) of the points provided

• Tt_paths_Temp : array of size `(nt,npaths)`` with the temperature of every path.

Output:

• prob : a vector that gives the relative probability that a zircon with a given age exists

• ages_eruptible : age of eruptble magma

• number_zircons : 1D array of size (nt,)

• T_av_time: vector of size nt that contains the average T of the paths

• T_sd_time: vector of size nt that contains the standard deviation of the T of the paths

• cumPDF: vector of size nt that contains the cumulative probability density function that we have an age of less than a certain one in the samples

This routine was developed based on an R-routine provided as electronic supplement in the paper:

• Weber, G., Caricchi, L., Arce, J.L., Schmitt, A.K., 2020. Determining the current size and state of subvolcanic magma reservoirs. Nat Commun 11, 5477. https://doi.org/10.1038/s41467-020-19084-2

source

time_years, prob, ages_eruptible, number_zircons, T_av_time, T_sd_time, cumPDF  = compute_zircons_Ttpath(time_years_vecs::Vector{Vector{Float64}}, Tt_paths_Temp::Vector{Vector{Float64}}; ZirconData::ZirconAgeData = ZirconAgeData())

This accepts Vector{Vector} as input for time and temperature of each Tt-path. Here, the length of the vector can be variable between different points.

Internally, we interpolate this into a 2D matrix and a longer vector that includes all paths and a single vector with times

source

GeoParams.ZirconAges.zircon_age_PDF Function

zircon_age_PDF(ages_eruptible::AbstractArray{Float64,1}, number_zircons::AbstractArray{Float64,2}, bandwidth=1e5, n_analyses=300, ZirconData::ZirconAgeData)

Compute probability density functions for zircon age path's describes in number_zircons with age ages_eruptible (both computed ). bandwidth is the smoothening window of the resulting curves (in years), whereas n_analyses are the number of analyses done.

source

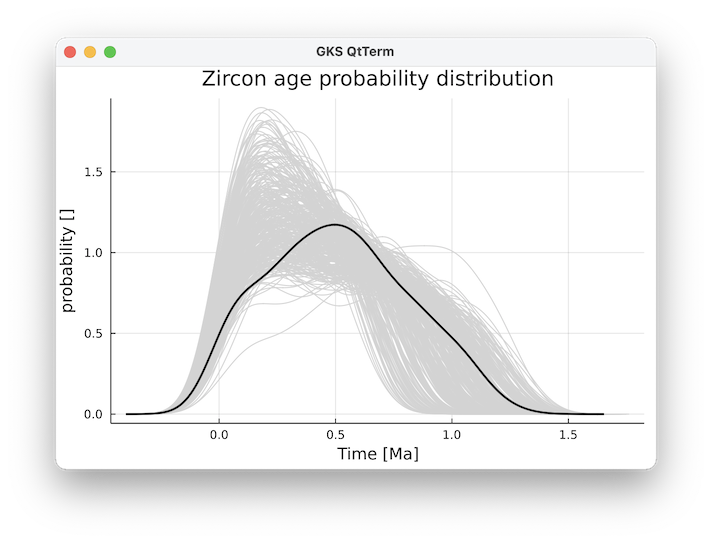

We also provide a plotting routine, provided the GLMakie.jl package is loaded, which produces figures such as:
